2017 aluminum plate / Aluminum coil

Loading Port: Tianjin/Qingdao, China
Sample: A4 Sized
Payment Terms: L/C,D/P,T/T
Delivery time: Within 15-30 Days
Email Us:zhangmenghao@mingtai-al.com
Contact Us

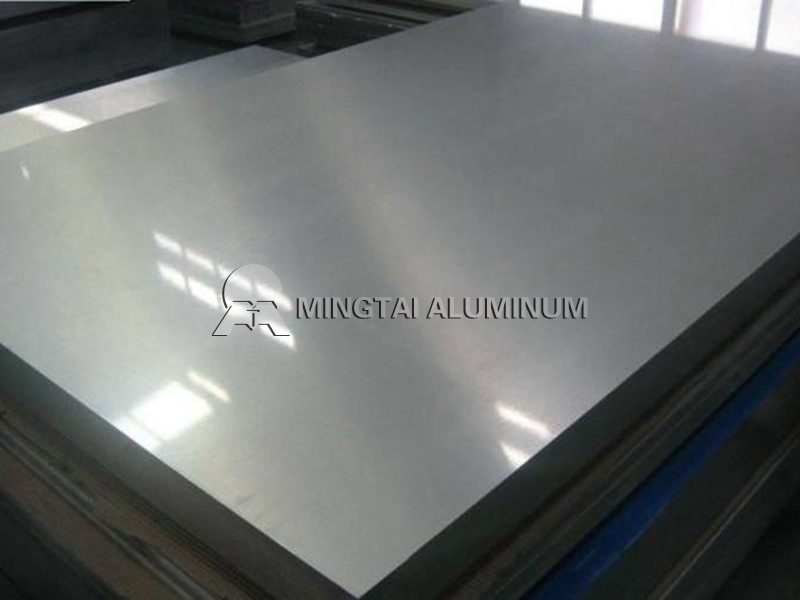

2017 aluminum plate introduction:

The 2017 aluminum plate is a typical hard aluminum alloy in the aluminum-copper-magnesium system, which has reasonable composition and good comprehensive performance. This alloy is produced in many countries and is the largest used in hard aluminum. The alloy is characterized by high strength and a certain heat resistance, and can be used as a working part below 150 °C. At temperatures above 125 ° C, the strength of the 2017 alloy is higher than that of the 7075 alloy. Widely used in aircraft structures, rivets, truck hubs, propeller components and other structural components.

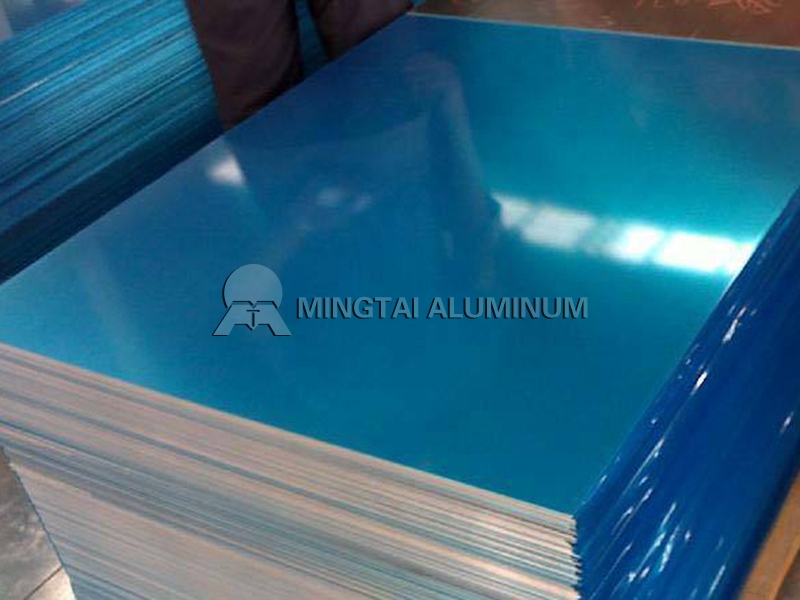

2017-aluminum-plate-6
The 2017 aluminum plate is the first 2××× alloy to be used in industrial applications. It has high strength and good machinability, but has poor corrosion resistance. The 2××× series aluminum plates are characterized by high hardness, among which the original content of copper is the highest, about 3-5%. 2××× series aluminum plates are aerospace aluminum materials, which are not commonly used in conventional industries.
2017-aluminum-plate-4

2017 aluminum plate use:

2017 aluminum plates are commonly used in rivets, general mechanical parts, aircraft, ships, transportation, building structural parts, transportation structural parts, propeller components and accessories.
2017-aluminum-plate-5

2017 aluminum plate heat treatment process:

The forming properties are better in the state, annealing and new quenching conditions, and the heat treatment strengthening effect is remarkable, but the heat treatment process is strict. Corrosion resistance is poor, but it can be effectively protected by coating with pure aluminum; it is easy to crack when welding, but it can be welded or riveted by special process.

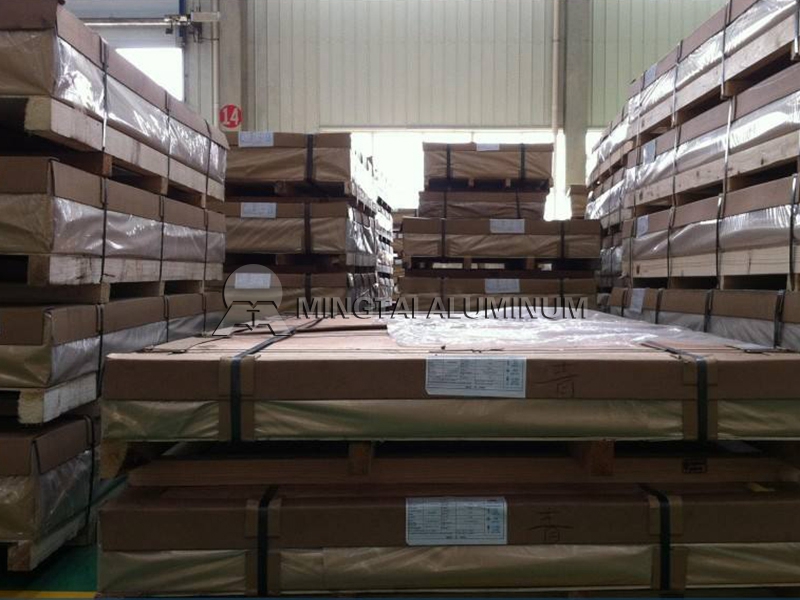

2017-aluminum-plate-2
