Honeycomb foil 3003

Loading Port: Tianjin/Qingdao, China
Sample: A4 Sized
Payment Terms: L/C,D/P,T/T
Delivery time: Within 15-30 Days
Contact Us

Honeycomb Foil 3003 for Aluminum Honeycomb Core

In fact, aluminum honeycomb core is made of multiple layers of honeycomb foil bonded together, such as honeycomb foil 3003, 5052, and then unfolded into a regular honeycomb shape. So, the parameters of honeycomb foil, and honeycomb core specifications, node glue,etc., become the key factors, affecting the performance of the honeycomb core. For honeycomb foil 3003, as the most important material, its properties directly affects the quality and service life of the honeycomb core.

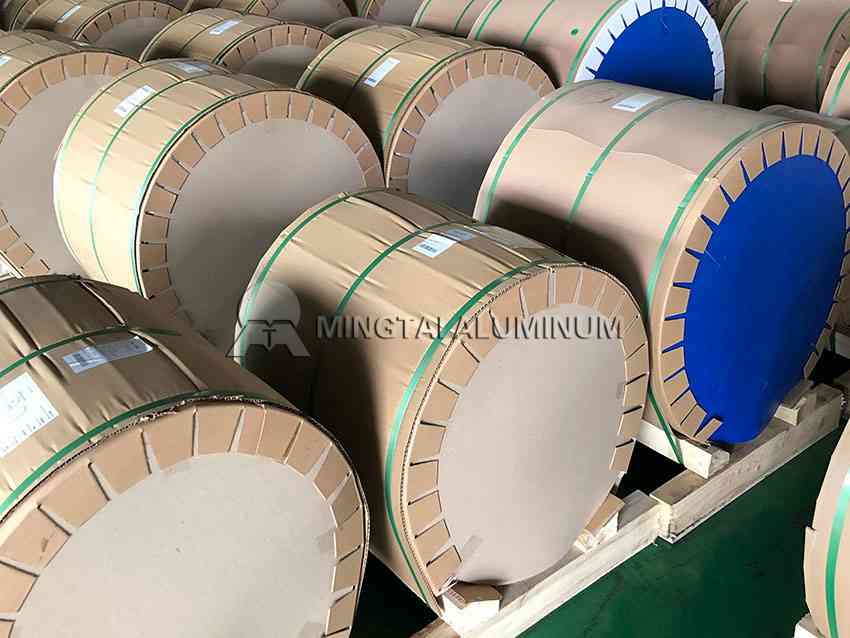

Honeycomb foil 3003

Honeycomb Foil 3003 for Honeycomb Core Advantages

Honeycomb foil 3003 surface is clean. Glue isn’t easy to fall off
Mingtai special oil removal equipment, using imported cleaning fluid, to ensure that 3003 aluminum foil for honeycomb core is free of oil stains. And the glue is solid, not easy to fall off, It has a long service life.
High strength, not easy to deform after processing
Use 3003-h18 honeycomb foil for the honeycomb core, the strength is much higher than 1100 aluminum foil, the finished product is not easy to deform, the end panel surface is more flat, the edge is free of burrs, etc.
High flatness, and Good final profile
Equipped with a shape control instrument, to monitor the shape in real time. The follow-up straightening process, to correct the shape twice, ensuring Mingtai honeycomb foil 3003 has high flatness, and error accuracy.
Honeycomb foil 3003

Technology of Honeycomb Foil 3003 for Honeycomb Core

Typical Alloy 3003 Aluminum Foil
Temper O,H14,H16,H18,H22,H24
Thickness(mm) 0.016-0.2
Width(mm) 100-1600
Length(mm) C

Alloy Content of Honeycomb Foil 3003 for Honeycomb Core

Alloy Composition(mass fraction)/%
Grade Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
Single Total
3003 0.6 0.7 0.05~0.20 1.0~1.5 0.1 0.1 0.2 Remain

Honeycomb Foil 3003 Mechanical Properties

Typical Alloy Tensile Strength  σb (MPa) Yield Strength σ0.2 (MPa) Elongationδ16 (%) Electrical Conductivity(20℃)(IACS,%)
Honeycomb Foil 3003 115 ≥85 25 48

Honeycomb foil 3003

Application of Final Product Made by Honeycomb Foil 3003

Aluminum honeycomb core made from honeycomb foil 3003, 5005 in the middle, as main structure of aluminum honeycomb composite panel, makes the overall structure significantly reduce weight, due to its thin, light and low density. At present, aluminum honeycomb panel with its light weight, high strength, high stiffness, strong corrosion resistance, environmental protection, and lots of other advantages, has been widely used in the building exterior decoration, interior partition, furniture, vehicle coach, etc.

Here, Mingtai Al. is a large-scale honeycomb foil for aluminum honeycomb core manufacturer, which can produce honeycomb foil 3003, and 5052 aluminum foil for honeycomb core of various widths ,with a thickness of 0.02-0.06 mm. These Mingtai honeycomb foils ensure degreasing clean, high strength, flat shape, and have been successfully exported to more than 40 countries and regions ! So hurry up contact us now ! Come on !

Leave a inquiry

Please help to confirm alloy number and temper, size (thickness*width*length), quantity at your demand.
