5083 aluminum sheet for yacht, favored for excellent seawater corrosion resistance, stable weldability and lightweight high strength. Many yacht designers and fabricators struggle with thickness selection: overly thin sheets cause deformation & cracking; excessive thickness leads to overweight, higher cost and poor speed performance. The following is an industry standard thickness reference.
Different Yacht Structure Requirements
Hull Outer & Bottom Plating
The underwater hull bears continuous seawater pressure, wave impact, grounding collision and fatigue load. It is the highest-load part, requiring anti-impact and anti-pitting corrosion. Bow, bilge and waterline zones suffer the strongest impact stress.
Deck Structure
Main deck bears walking load, equipment weight and frequent abrasion; superstructure decks bear lighter loads, focusing on lightweight design.
Bulkheads & Interior Partitions
Main watertight bulkheads need structural rigidity; ordinary compartment partitions only require lightweight separation, with low load requirements.
Reinforced Key Parts
Concentrated heavy load and frequent vibration demand ultra-high toughness and strength.
Thickness of 5083 Aluminum Sheet for Yacht Structure
| Structural Part | Small Yacht | Medium Yacht | Large Yacht |
|---|---|---|---|
| Hull main outer plate | 4–6 mm | 6–8 mm | 8–12 mm |
| Bottom reinforced zone | 6–8 mm | 8–10 mm | 10–15 mm |
| Main walking deck | 3.5–5 mm | 5–7 mm | 6–9 mm |
| Superstructure deck | 3–4 mm | 4–5 mm | 5–6 mm |
| Watertight bulkhead | 3–5 mm | 4–6 mm | 6–8 mm |
| Interior partition | 2–3 mm | 2.5–3.5 mm | 3–4 mm |
| Keel / engine base | 12–20 mm | 15–25 mm | 20–40 mm |

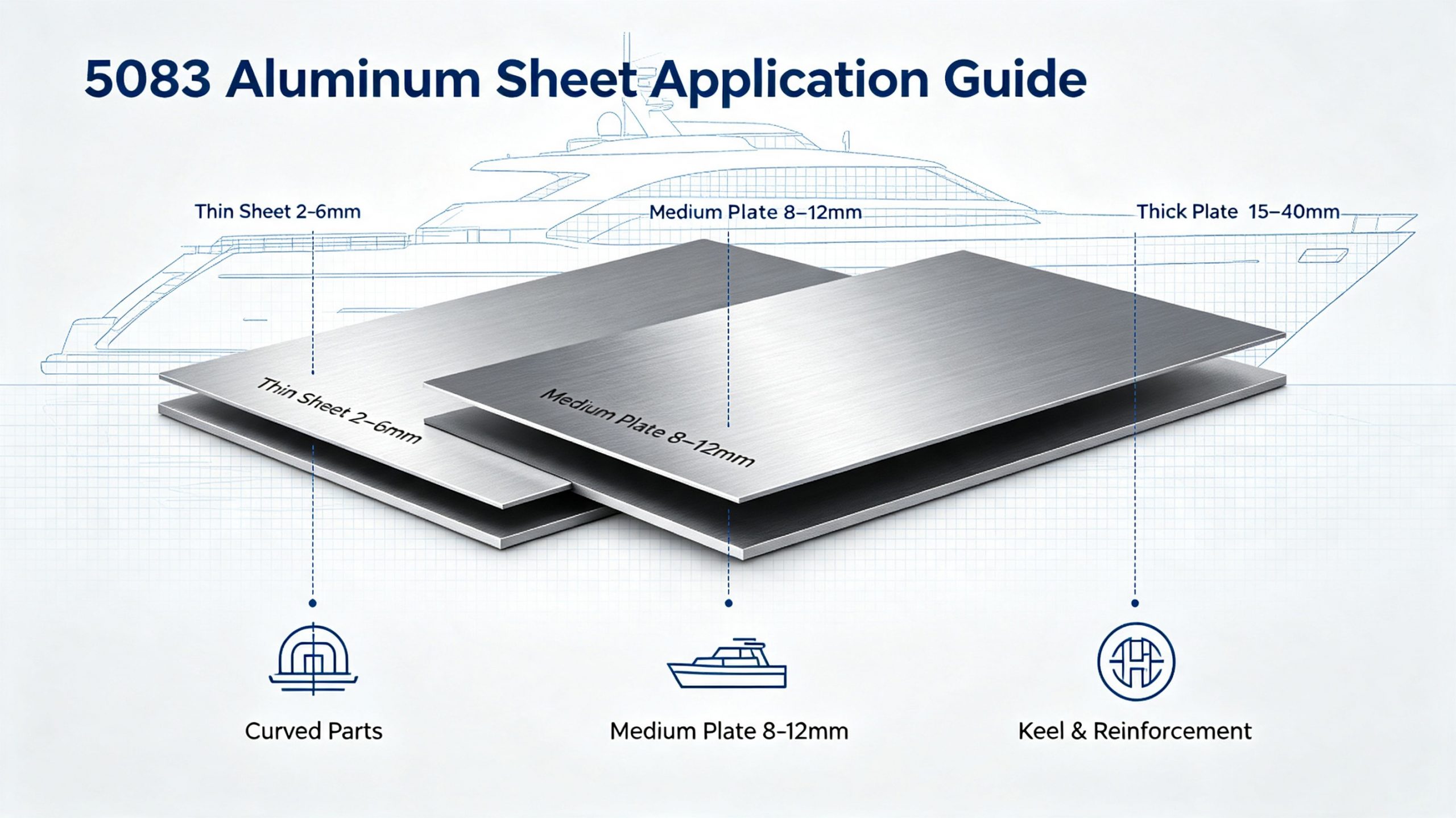

Thin Sheet vs Thick Plate Quick Comparison
| Parameter | Thin Sheet (2–6 mm) | Thick Plate (8 mm+) |
|---|---|---|
| Best for | Curved forming, interior, superstructure | Hull bottom, bow, keel, watertight bulkhead |
| Strength level | Moderate | High |
| Weight impact | Lightweight, faster speed | Heavier, more fuel consumption |
| Service life | 15–20 years | 25–40+ years |
| Material cost | Lower | Higher |
| Formability | Excellent bending & deep drawing | Limited forming |
| Typical temper | 5083-O | 5083-H321 / H116 |
Final Selection Summary
Inland small leisure yacht: Prioritize thin standard thickness (4–6mm hull sheet), focus on lightweight and speed;
Coastal medium luxury yacht: Adopt 6–8mm hull plate, balance service life and construction cost;
Ocean-going large yacht: Thicken key impact areas properly to improve fatigue resistance;
Forming curved parts: Use thin 5083-O soft temper sheet; main structure must select H321/H116 hardened sheet;
