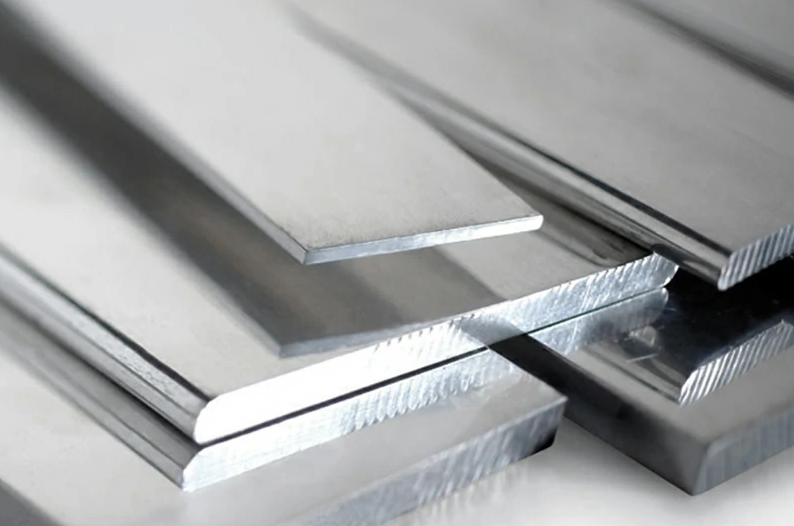

6101 Aluminum Alloy Plates for Conductive Busbars
Sample： A4 Sized
Payment Terms： L/C,D/P,T/T
Delivery time： Within 15-30 Days
Email Us:sale06@mingtai-al.com
6101 is a heat-treatable aluminum alloy belonging to the Al-Mg-Si 6series alloy. Unlike general-purpose alloys such as 6061 or 6063, which prioritize strength or extrudability, 6101 Aluminum Alloy Plates is formulated to maximize electrical conductivity while retaining adequate mechanical strength for busbar service.
Key Differentiators of 6101 Aluminum Alloy Plates
Designed for electrical conduction – Not a structural alloy adapted for conductivity, but a conductivity alloy adapted for structure
Narrow composition control – Tighter limits on silicon, magnesium, and iron compared to 6061
Optimized heat treatment – Special T6 and T61 tempers that balance precipitate size for both strength and conduction
Typical Applications of 6101 Aluminum
Because 6101 balances electrical and mechanical performance, it is specified for:
- Low-voltage switchgear (LVSWG) – Main horizontal and vertical busbars
- Motor control centers (MCCs) – Plug-in bus stacks
- Power distribution units (PDUs) – Internal current-carrying conductors
- Busbar trunking systems (busway) – Both feeder and plug-in patterns
- Renewable energy combiners – Solar and wind power collection
- Electrolytic rectifiers – High-current DC bus connections
- EV charging infrastructure – Internal power distribution
6101 Aluminum Mechanical Properties
| Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Conductivity (% IACS) |
|---|---|---|---|---|
| T64 | 180–200 | 145–165 | 14–18 | 55–56 |
| T6 | 205–240 | 170–200 | 10–14 | 52–53 |
| T61 | 200–220 | 165–185 | 12–16 | 54–56 |
6101 Aluminum Alloy Specification
Thickness: 0.5 – 500 mm
Width: 100 – 2650 mm
Length: 500 – 16000 mm
6101 aluminum alloy Its optimized chemistry, specialized tempers , and balanced mechanical/electrical properties make it the first choice for engineers building reliable, efficient, and cost-effective power distribution systems.
When your next project requires busbars that carry current without excessive heat, weight, or cost, specify Mingtai 6101 aluminum alloy with confidence.
