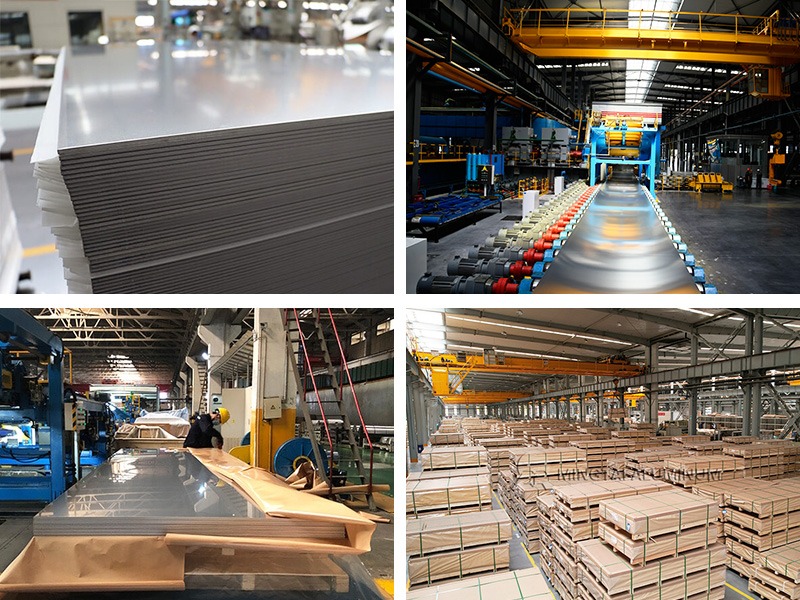

5754 H111 Aluminum Plate for Boat Building

Loading Port： Tianjin/Qingdao, China
Sample： A4 Sized
Payment Terms： L/C,D/P,T/T
Delivery time： Within 15-30 Days
Email Us:sale06@mingtai-al.com

Contact Us

The 5754 alloy is a type of Al-Mg anti-rust aluminum, offering medium strength, excellent corrosion resistance, good weldability, and ease of processing and forming. As a result, 5754 H111 Aluminum Plate is commonly used in shipbuilding applications, including welded structures, storage tanks, and pressure vessels.

Why choose Mingtai Aluminum’s 5754 marine aluminum plate?

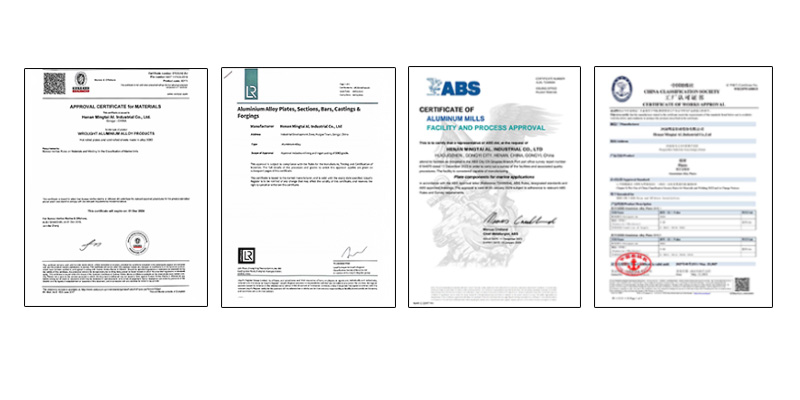

Its quality fully complies with globally recognized marine standards, including CCS, ABS, BV, LR, and KR. Mingtai Aluminum has also obtained ISO 12215-5:2019 certification, ensuring that its production and management align with international marine quality systems. This guarantees outstanding corrosion resistance, excellent weldability, and strong impact resistance.

Specification of 5754 H111 Aluminum Plate

Specific parameters

Alloy	5754	AlMg3
Temper	O, H111, H22, H24, H26, H32, H34	H111/H22/H24/H26 are the standard marine Temper
Thickness	3.0 – 500.0 mm	Medium and heavy aluminum plates can be produced
Width	600 – 3,000 mm	extra-wide aluminum plate
Length	16,000 mm	building large ship hull components

Mechanical properties

	O / H111	H22 / H24	H26
Tensile strength	190 – 240 MPa	240 – 280 MPa	265 – 305 MPa
Yield strength	≥ 80 – 100 MPa	≥ 160 – 185 MPa	≥ 190 – 245 MPa
elongation	12% – 25%	6% – 15%	4% – 10%
Typical hardness	45 – 55 HB	70 HB	78 HB

Noted: The H22/H24 temper offers high strength and retains good bending performance, making it the most widely used temper in ship structures; the O/H111 temper is flexible and has high elongation, making it suitable for deep-drawn components.

Chemical Composition

Element	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
Wt%	≤ 0.40	≤ 0.40	≤ 0.10	≤ 0.50	2.6 – 3.6	≤ 0.30	≤ 0.20	≤ 0.15	Balance

Key feature: The magnesium (Mg) content of 2.6–3.6% provides excellent resistance to seawater corrosion.

Uses of 5754 Marine Grade Aluminum Plate

5754 marine aluminum plate is widely used in various ship types and components. Key applications include:

Hull structure – shell plates, bottom plates, side plates (high strength & corrosion resistance)
Ship deck – covering and decoration (lightweight improves stability and fuel efficiency)
Internal structure – partitions, bulkheads, cabin ceilings (lightweight, strong, durable)
Deck equipment – portholes, hatches, boarding doors, gangways (corrosion-resistant & strong)
High-speed boats & yachts – ideal for weight-sensitive, high-performance vessels
